The 60” Back-to-Back Ladder Handle with Floor Lock – 1-3/8″ (35mm) Diameter provides a secure and concealed locking solution for frameless glass doors, featuring a fully integrated deadbolt mechanism that locks directly into the floor. The lock operates at a comfortable height of 54″ above the floor, eliminating the need to bend down and making it child proof. This handle is ideal for modern interior glass doors in commercial and residential spaces and heavy duty applications.

Key Features:
– Back-to-Back Ladder Handle Design – Provides a secure grip and modern aesthetic.
– Locks Into the Floor Only – No additional locking points required.
– 60″ (1524mm) Handle Length – Ideal for large glass doors.
– For 3/8″ to 3/4″ (10 to 19mm) tempered glass.
– 1-3/8″ (35mm) Diameter Tubing
– Complete Kit- Includes SUS 304 Brushed Stainless 5/8″ Dust Proof dead Bolt Floor Strike , keys, and all necessary hardware.
– Accepts Most Standard Rim-Type Cylinders

Additional Notes : Glass fabrication required for installation.

Our hardware finishing process includes three different applied methods, each resulting in a durable, corrosion-resistant, and visually appealing finish. These methods include electrophoresis (Matte Black), chrome plating (chrome), and nickel plating (Brushed Nickel). Regardless of the chosen option, our hardware finish process guarantees a beautiful, long-lasting finish that meets the highest industry standards for quality and durability, providing exceptional performance and visual appeal.

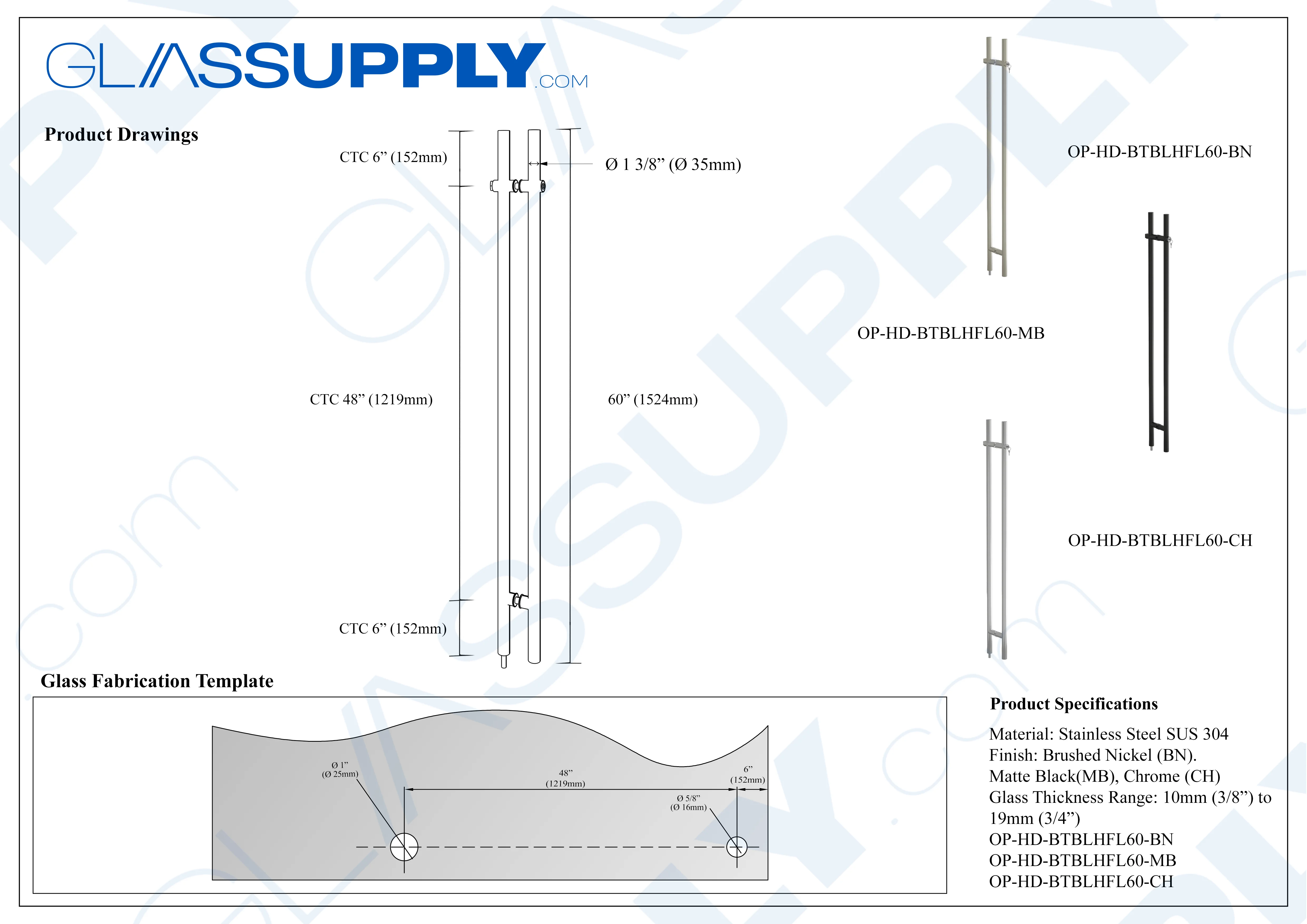

TECHNICAL SPECIFICATIONS
